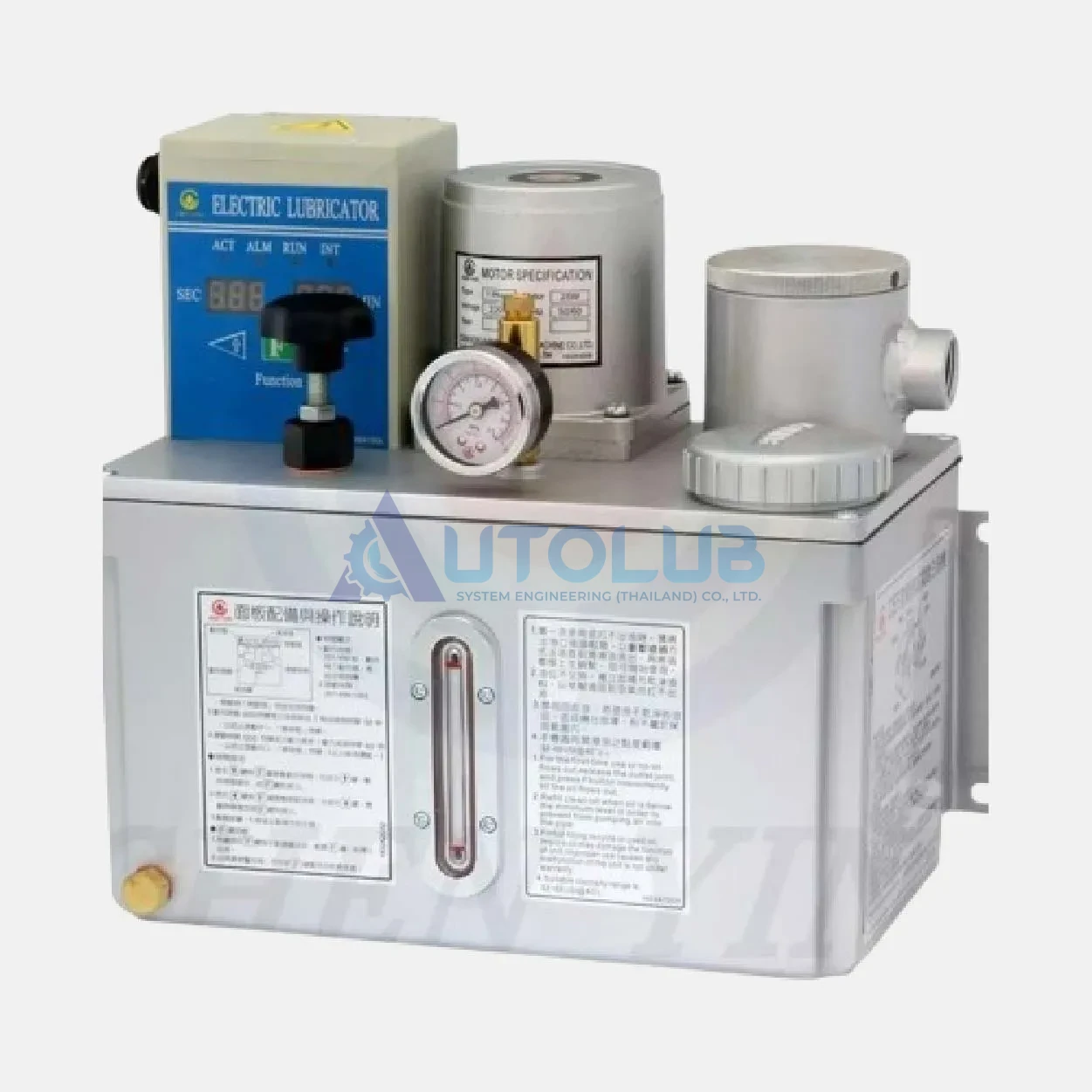

CEF – Series

1.CEF has a cyclic inlet that allows the oil to return to the oil tank, which saves the oil consumption.
2.CEF has a magnetic filter inside the cyclic inlet that prevents iron filings from flowing into the oil tank to maintain the cleanness of the circulating oil.
3.CEF has a timer that controls its operation and interval time. The control box has four indicators, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
4.The control box has a build-in buzzer that sends an alarm sound when the oil level is low.
5.The gear pump of CEF is made of special aluminum alloy and assembled with the induction motor to provide stable output pressure, low operating noise, and long service life.
6.CEF has a pressure-regulating valve that enables the user to adjust the operating pressure.
7.CEF has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
8.CEF has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
9.After installing CEF and connecting all oil pipes, let CEF continue running until oil fulfills all oil pipes. The lubricator is ready to use when the oil flows out to remove the air bubbles.
