รายละเอียดสินค้า
1. The discharge volume of POM is precise and can be adjusted from 0.01cc to 0.08cc per stroke.
2. POM can be actuated either by a frequency generator or a solenoid valve.
● The pneumatic pressure supply drives the frequency generator, and the user can adjust each stroke frequency upon demand. The service life is ten million cycles.
● The input voltage powers the solenoid valve, and the PLC can precisely control its stroke frequency. The solenoid valve works as the ON/OFF switch of the pneumatic pressure supply. 3. The service life is two million cycles.
4. POM requires 4-8kgf/cm2 pneumatic pressure supply to operate.
5. The standard POM has one outlet, which can be increased to four on request. Do not plug any outlet of POM.

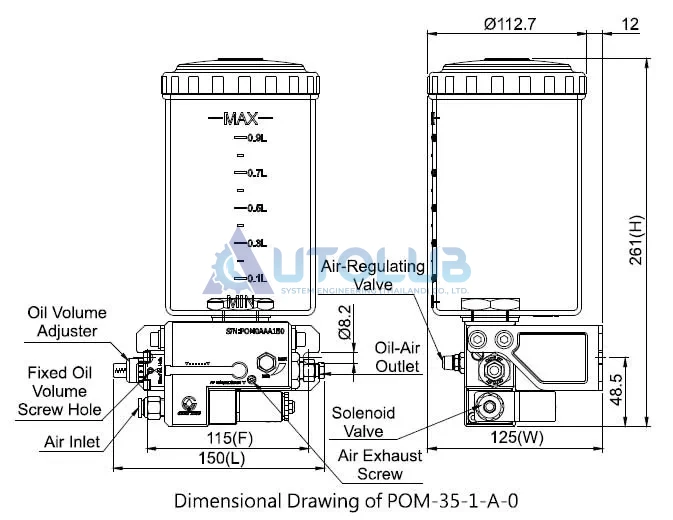

6. POM has an oil volume adjuster for adjusting the discharge volume. The fixed oil volume screw hole secures the oil volume adjuster to prevent its setting from being changed.
7. The air-regulating valve can adjust the air volume upon the need. Turn the air-regulating valve clockwise to decrease the air volume and turn it anti-clockwise to increase the air volume.
8. All POM lubricators have 80-mesh oil filters. The oil inlet of the 2L-square tank has an additional 40-mesh oil filter to filter the impurities.
9. Each outlet of POM can add a reed switch to detect if stroke movements are regular.

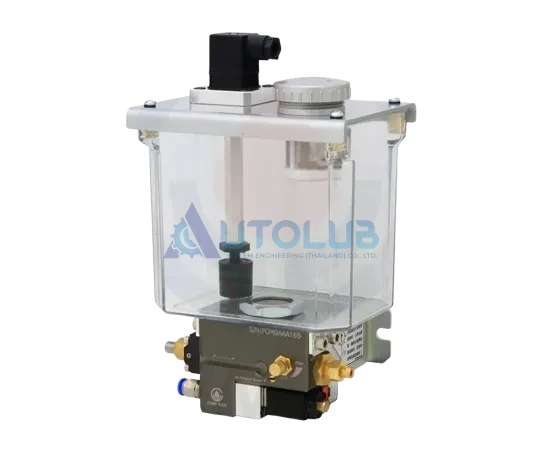

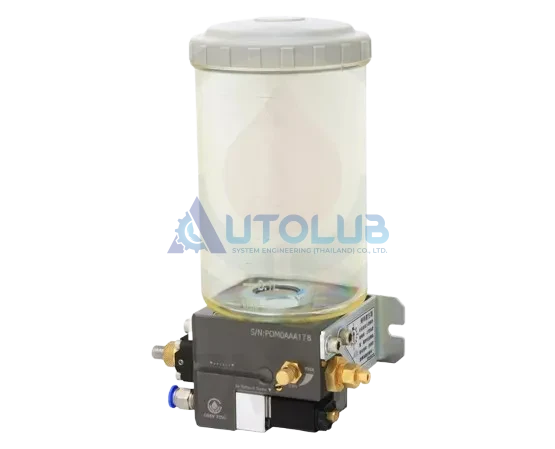

2L square tank and 2000cc cylindrical tank can add a float switch to detect oil level automatically.
10. Recommend using vegetable oil viscosity 22~68cSt@40 °C. Forbid filling cutting fluid and volatile lubricants, such as alcohols and ethylene glycol-based lubricants.
