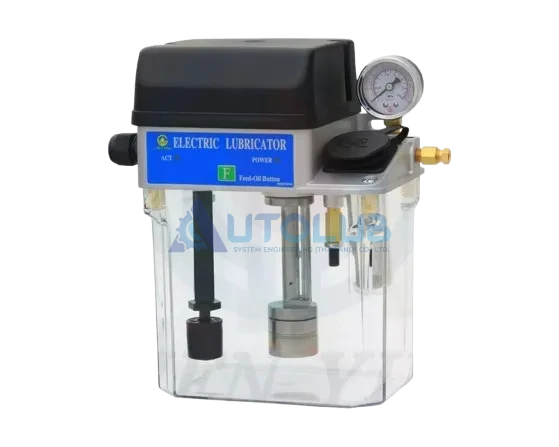

CESG03 – Pressure-Relief Type Oil Electric Lubricator

1. The operation and interval time of CESG03 are controlled by PLC.
2. CESG03 has to work with volume distributors to deliver the metered quantity of oil to the lubrication point.
3. CESG03 has a pressure gauge that enables the user to check the operating pressure easily.
4. CESG03 has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
5. CESG03 has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
6. CESG03 has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.
7. An 8kgf/cm2 socket pressure switch can be added to CESG03 on request to detect the operating pressure automatically.
