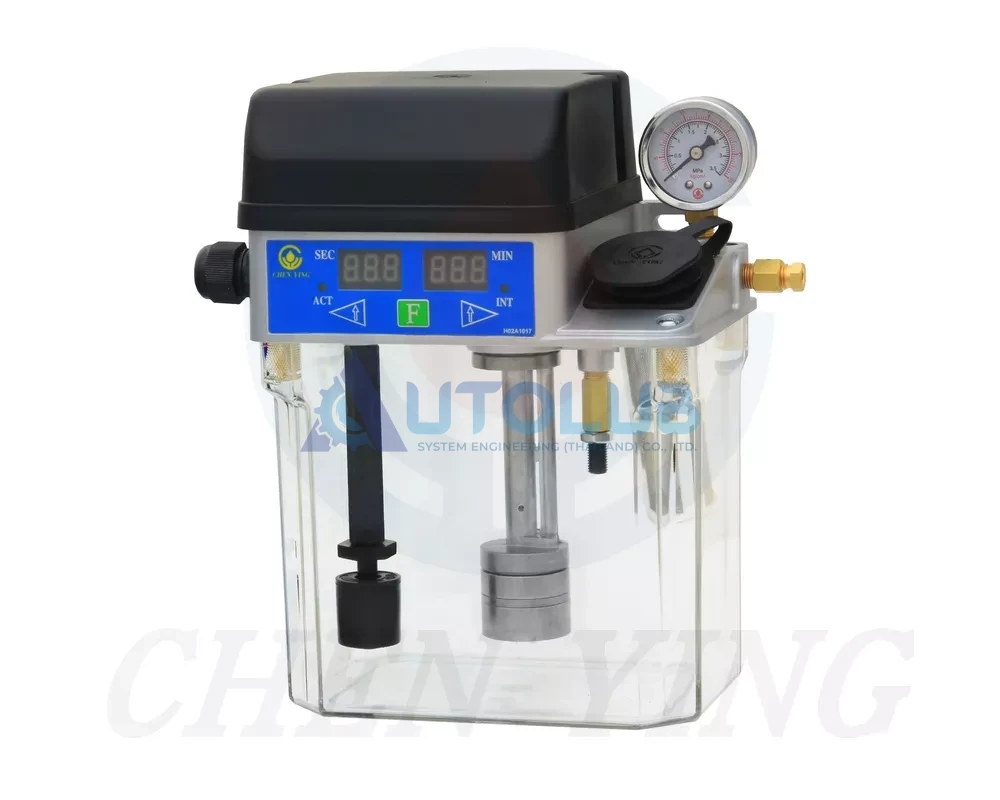

CESG04 – Pressure-Relief Type Oil Electric Lubricator

1. CESG04 has a timer that controls its operation and interval time. The control box has a built-in buzzer that sends an alarm sound when the oil level is low.
2. The control box also has two indicators, operation (ACT), and interval (INT).
3. CESG04 has to work with volume distributors to deliver the metered quantity of oil to the lubrication points.
4. CESG04 can memorize the set value of operation time and interval time.
5. There are two operation modes after the power of CESG04 is on. The standard mode is turn on feeding.
● Turn-on-feeding: Operation time starts first after the power is on.
● Turn-on-interval: Interval time starts first after the power is on.
6. Turn-on-interval model has a memory function. If the power is suddenly off during the interval time, CESG04 will continue to operate from the remaining interval time after restarting, which can effectively avoid over-lubrication.
7. CESG04 has a pressure gauge that enables the user to check the operating pressure easily.
8. CESG04 has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
9. CESG04 has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
10. CESG04 has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.
11. An 8kgf/cm2 NC contact socket pressure switch can be added to CESG04 on request to detect the operating pressure automatically.
