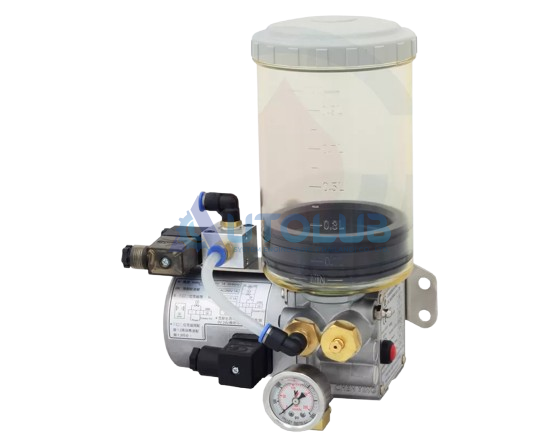

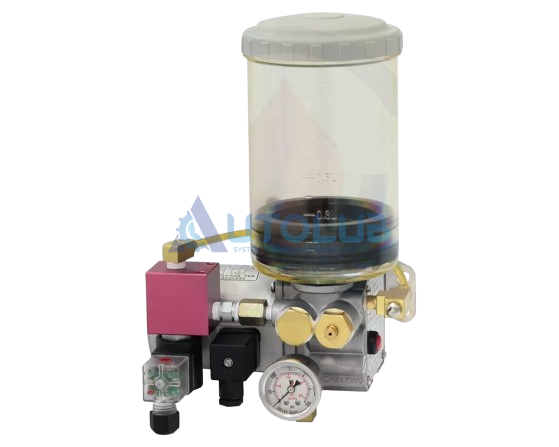

KGNVB Pressure-Relief Type Fluid Grease Electric Lubricator

1. KGNVB has a timer that controls its operation and interval time.
2. KGNVB has to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
3. There are four indicators on the control box, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
4. KGNVB has a pressure-regulating valve that enables the user to adjust the operating pressure. KGNVB also has a feed-grease button (F button), which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
5. 20kgf/cm2 socket pressure switch can be added to KGNVB on request to detect the operating pressure automatically.
6. The gear pump of KGNVB is made of special aluminum alloy and assembled with a 40W induction motor to provide stable output pressure, low operating noise, and long service life.
The induction motor has a fan that can reduce the temperature and prolong the service life of KGNVB.
