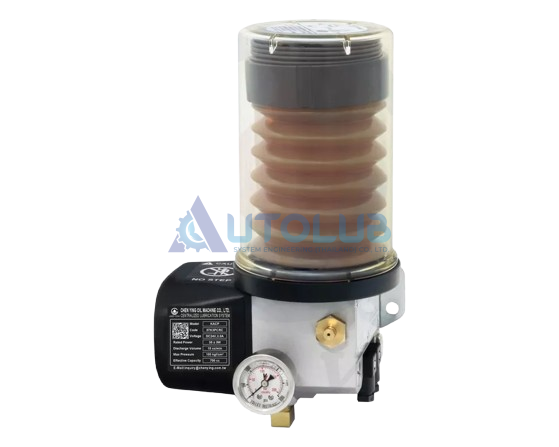

KABP Pressure-Relief Type Grease Electric Lubricator

1. The operation and interval time of KAB and KABP are controlled by PLC.
2. KAB and KABP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
3. KAB and KABP have pressure gauges that enable the users to check the operating pressure easily.
4. KAB and KABP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
5. A 60kgf/cm2 socket pressure switch can be added to KAB and KABP on request to detect the operating pressure automatically.
6. A magnetic level switch can be added to KAB and KABP on request to detect the grease level automatically.
7. For KAB, please refill grease from the grease inlet to prevent air and impurities from going into the grease tank.
8. KABP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KABP-07 with a new grease cartridge. Standard KABP-07 does not include a grease cartridge but is available upon request.
