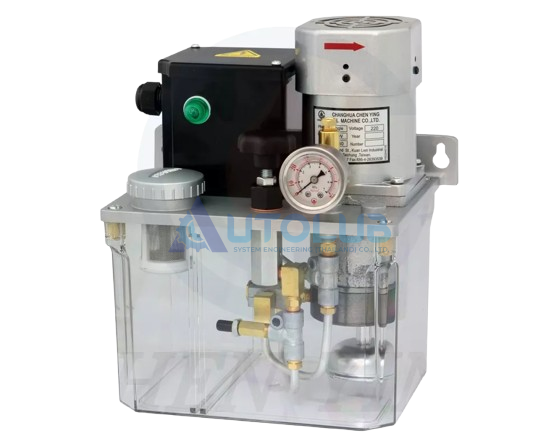

KGVB Pressure-Relief Type Fluid Grease Electric Lubricator

1. The operation and interval time of KGVB are controlled by PLC.
2. KGVB has to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
3. KGVB has a pressure-regulating valve that enables the user to adjust the operating pressure. KGVB also has a feed-grease button, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
4. A 20kgf/cm2 socket pressure switch can be added to KGVB on request to detect the operating pressure automatically.
5. A capacitive level switch can be added to KGVB on request to detect the grease level automatically.
6. The gear pump of KGVB is made of special aluminum alloy and assembled with a 40W induction motor to provide stable output pressure, low operating noise, and long service life.
7. The induction motor has a fan that can reduce the temperature and prolong the service life of KGVB.
